Outdoor Protective Housing – Optris

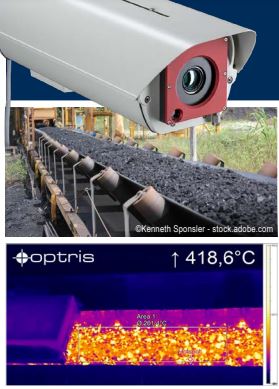

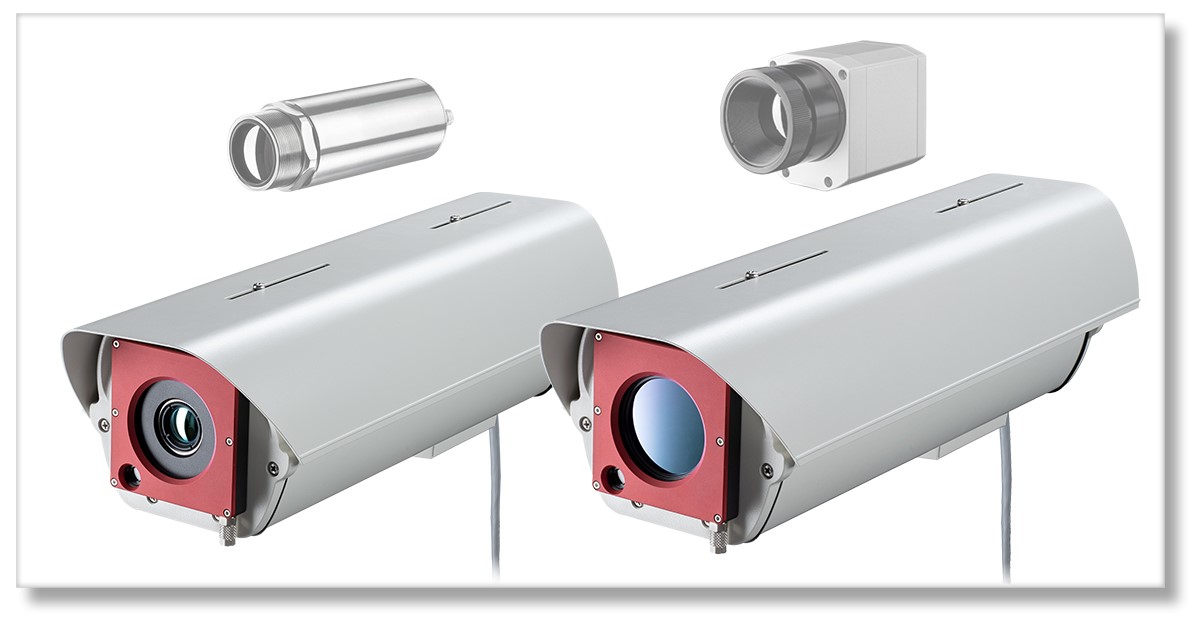

The Outdoor Protective Housing by Optris is a robust solution designed for extreme outdoor conditions, ensuring reliable operation across a wide temperature range from -40°C to +50°C. This housing is perfect for applications requiring durable protection for sensitive equipment like infrared cameras and HD video cameras. With its 1280 x 720 pixel resolution, 30 Hz frame rate, and 65° field of view, the integrated VIS camera is an ideal addition for combined thermal and visual condition monitoring or early fire detection systems. Additionally, the USB server, which can also be integrated within the housing, merges the data from both cameras into a single stream, transmitted via Ethernet. This feature allows seamless integration into existing video management systems.

Key Features:

• Exclusive Protective Outdoor Housing: Designed specifically for monitoring and fire detection in extreme outdoor environments.
• IP66 Rating: Ensures complete protection against dust and powerful water jets, making it suitable for 24/7 operation in harsh conditions.
• Integrated Air Purging: Keeps the optics clear of debris, ensuring continuous and reliable monitoring.
• Temperature Control: Built-in heating element and cooling fan support stable operation across a wide temperature range from -40°C to +50°C.
• High-Resolution Cameras: Includes an IR camera with 382 x 288 resolution and an HD video camera with 1280 x 720 resolution, ensuring detailed visual and thermal monitoring.

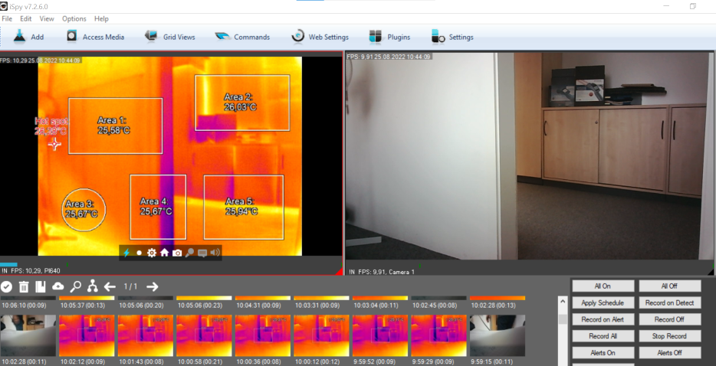

• Easy Integration: The USB server combines data from both cameras into a single stream for easy integration into existing video control systems.

Applications:

• Condition Monitoring: Ideal for monitoring critical infrastructure in extreme environments, ensuring continuous operation and early fault detection.
• Fire Detection: Suitable for early fire detection systems, especially in remote or industrial locations with challenging environmental conditions.
• Outdoor Surveillance: Perfect for integrating into outdoor surveillance systems where both thermal and visual monitoring are required.

Optimize your outdoor monitoring systems with Optris’ Outdoor Protective Housing. Contact us to learn more about how this housing can enhance your environmental monitoring and protection systems.
