Milesight TS30x – LoRaWAN Temperature Sensor for Reliable Monitoring

The Milesight TS30x is a professional LoRaWAN temperature sensor designed for accurate monitoring in demanding environments such as food production, pharmaceutical storage and cold chain logistics.

Equipped with an integrated LCD display and support for high-accuracy external probes, the TS30x provides reliable and traceable temperature measurements. The device supports flexible sensor configurations and optional door contact sensors, enabling not only temperature monitoring but also detection of events such as door openings.

With robust data logging, secure data export and long battery life, the TS30x is a reliable solution for applications where compliance, traceability and data integrity are critical.

Key Benefits

• High-accuracy temperature monitoring with external probe support
• Clear LCD display for direct on-site reading
• Up to 10,000 historical data records stored locally
• Secure data export (PDF/CSV) for compliance and reporting
• Long battery life with low power LoRaWAN technology
• Suitable for food and pharmaceutical applications (HACCP, EN12830)

What Does the TS30x Measure?

The TS30x is designed for precise temperature monitoring using:

• External PT100 temperature probes
• Optional temperature/humidity probes
• Optional magnetic door contact sensor

This allows you to monitor not only temperature but also operational events such as door openings, ensuring full insight into storage conditions.

Applications

The TS30x is ideal for:

• Food production and storage
• Pharmaceutical storage and distribution
• Cold chain monitoring
• Refrigerators and freezers
• Laboratories and research environments

Versions

The TS30x series consists of two models:

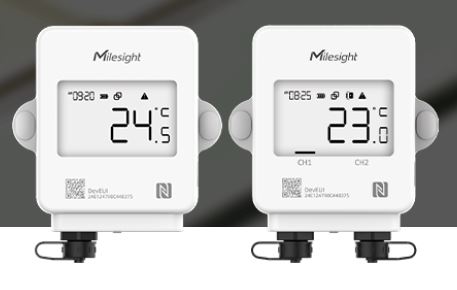

• TS301 – single-channel version
• TS302 – dual-channel version for multiple sensors

This flexibility allows configuration based on the specific monitoring requirements.

Technical Specifications

General

• Type: LoRaWAN temperature sensor
• Application: industrial, laboratory and cold chain monitoring

Measurement

• Temperature range (depending on probe): typically -40°C to +125°C
• High accuracy depending on probe type (e.g. PT100 sensors)

Data & logging

• Storage capacity: up to 10,000 records
• Data export: CSV or encrypted PDF via USB
• Data retransmission to prevent data loss

Connectivity

• Technology: LoRaWAN®
• Frequency bands: EU868, US915, AS923 and others
• Mode: OTAA / ABP Class A
• Transmission range: up to 2 km (urban) / 15 km (rural)

Power supply

• 2 × 4000 mAh replaceable batteries or USB power
• Battery life: typically up to 5 years depending on configuration

Display & interface

• LCD segment display
• NFC configuration via mobile app
• USB Type-C for configuration and data export

Housing & environment

• Protection class: IP65
• Operating temperature: -30°C to +70°C
• Relative humidity: 0% to 95% (non-condensing)

Physical

• Dimensions: 109.35 × 75 × 29 mm
• Weight: approx. 175–185 g

Compliance & Standards

• EN12830 (cold chain monitoring)
• HACCP requirements
• 21 CFR Part 11B (electronic records and traceability)

Installation & Use

• Easy installation via wall mounting or magnetic mounting
• Flexible probe connection via M12 connector
• Plug & play configuration via NFC or USB

The TS30x is designed for quick deployment and reliable long-term operation in professional environments.

Why Choose Pedak?

At Pedak, we deliver more than just sensors:

• Advice on the right measurement solution
• Integration into monitoring systems
• Calibration and maintenance services
• Support with validation and compliance

This ensures reliable measurements and a solution that performs in real-world conditions.
