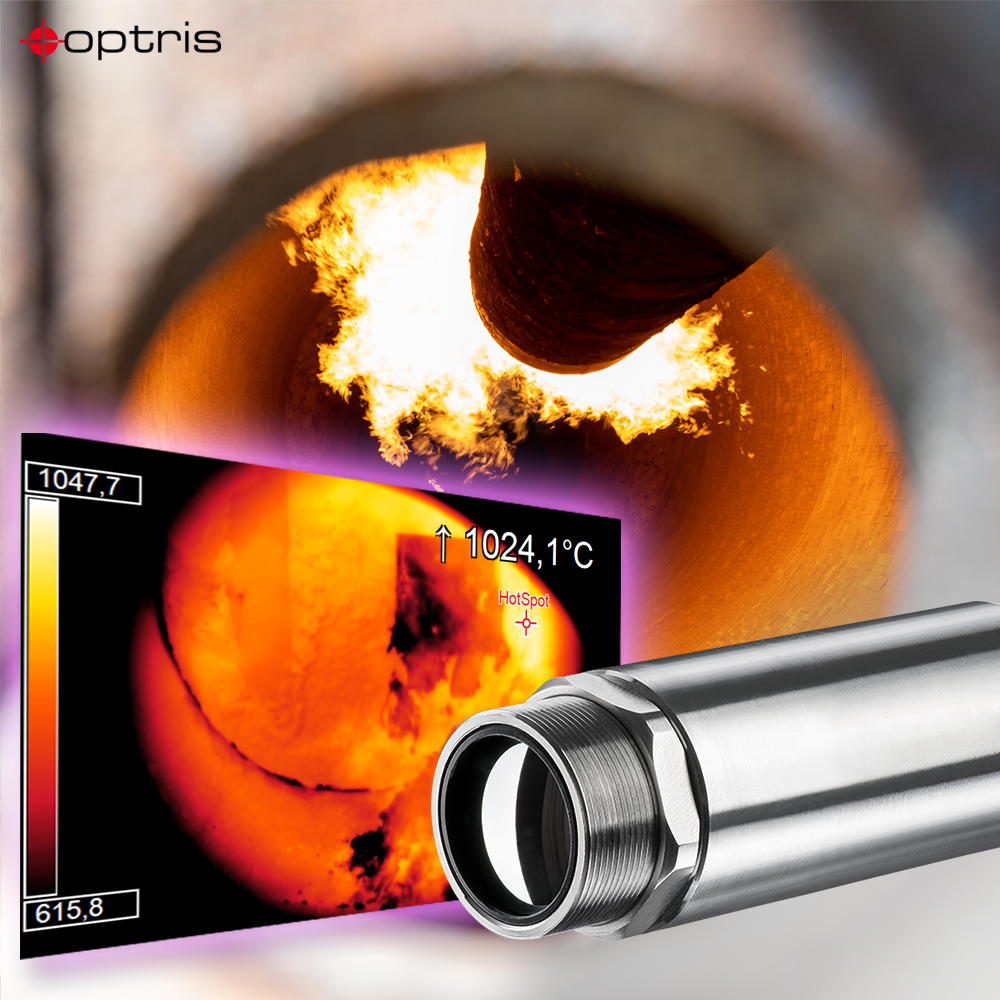

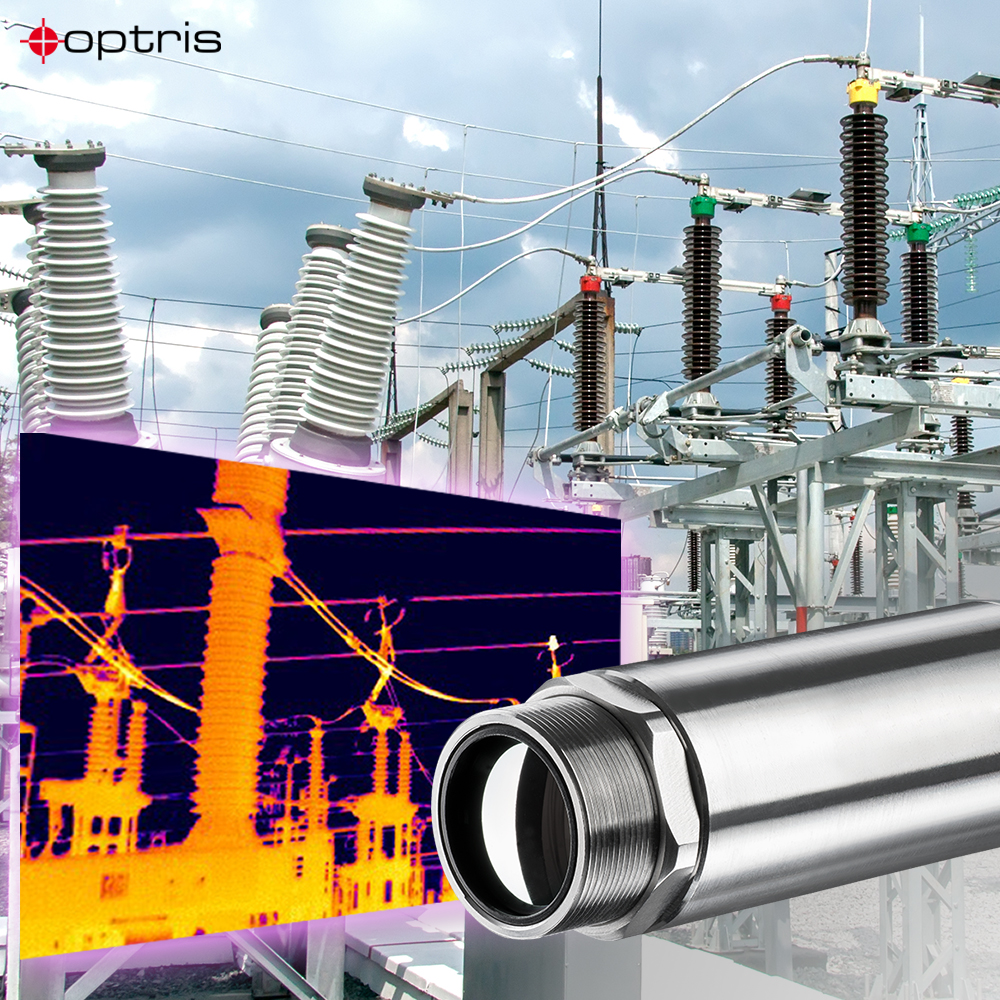

Dit model met een resolutie van 320 x 240 pixels is in staat om nauwkeurige temperatuurmetingen uit te voeren door vlammen heen in het bereik van 475 °C tot 1700 °C.
Zo kan de camera worden gebruikt voor het bewaken van werkstukken in ovens of om in chemische reactoren te meten of doeltemperaturen bereikt zijn of om de steentemperatuur in verbrandingskamers te observeren.
Technische specificaties
Technical details of the optris Xi 410 MT
• Scope of supply:
Process imager Xi 410 MT
USB cable (1 m)
Ethernet PoE cable (1m)
Cable for output/input (1 m) incl. terminal block
Mounting bracket with nut
Software package optris PIX Connect
• Detector:
FPA, uncooled (17 µm pitch)
FPA, uncooled (12 μm pitch) Xi 410 MT
• Optical resolution:
384 x 240 pixels
320 x 240 pixels
• Spectral range:
8 - 14 µm
3.9 μm
• Temperature ranges:
-20 °C...100 °C
0 °C...250 °C
(20) 150 °C...900 °C 1)
200 °C...1500 °C 2) (option)
475 °C...1700 °C (Xi 410 MT)
• Optical resolution / Frame rate (switchable):
non-autonomous operation:
Ethernet:
384 x 240 pixels @ 25 Hz
320 x 240 pixels @ 30 Hz (Xi 410 MT)
USB:
384 x 240 pixels @ 4 Hz
320 x 240 pixels @ 5 Hz
autonomous operation:
384 x 240 @ 1.5 Hz
320 x 240 pixels @ 1.7 Hz
• Optics (FOV):
Xi 410:
18° x 12° (f = 20)
29° x 18° (f = 13)
53° x 31° (f = 8)
80° x 44° (f = 6)
Xi 410 MT:
11° x 8° (f = 20 mm)
17° x 13° (f = 13 mm)
29° x 21° (f = 8 mm)
41° x 30° (f = 6 mm)
• Focus: Manual motor focus
• Distance-to-spot ratio:
390:1 (18° optics)
550:1 (11° optics) Xi 410 MT
• Thermal sensitivity (NETD):
80 mK
1 K @ 600 °C (Xi 410 MT)
• System accuracy (at ambient temperature 23 ± 5°C): ±2°C or ±2%, whichever is greater
• PC interface: USB 2.0 / Fast Ethernet / RS485
• Direct output/input:
1x analog output (0/4-20 mA) / 1x input (analog or digital); optically isolated
• Process interface (PIF):
3x analog outputs (0/4–20 mA or 0–10 V) or alarm OUT (relais) /
3x inputs (analog or digital) / fail-safe (LED and relay);
stackable up to 3 PIFs; optically isolated
• Ambient temperature (TAmb): 0 °C...50 °C
• Relative humidity: 10 - 95 %, non-condensing
• Enclosure (size / rating):
Ø 36 mm x 100 mm (M30x1 thread) / IP 67 (NEMA 4)
• Weight (without mounting bracket): 216 - 220 g, depending on lens
• Shock 3) : IEC 60068-2-27 (25G and 50G)
• Vibration 3) :
• IEC 60068-2-6 (sinus shaped)
• IEC 60068-2-64 (broadband noise)
• Tripod mount: 1/4-20 UNC
• Cable length:
USB: 1 m (standard), 3m, 5 m
Ethernet : 1 m (standard), 5 m, 10 m, 20 m (up to 100 m)
• Power supply:
USB / PoE / 5-30 VDC
USB / PoE / 5-24 VDC (Xi 410 MT)
1) Accuracy statement effective from 150 °C
2) If this option is ordered the (20)150 ... 900 °C range is not available
3) For more details see operator's manual
