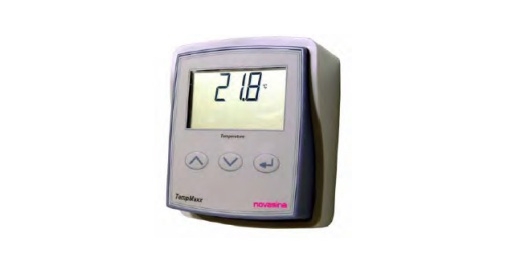

TempMaxx
Wall mount display for PT-100, PT-1000, Ni-1000 and NTC
Temperature measurement transducer for process applications
– Transducer and Indication unit for various temperature probes PT 100 / PT 1’000 / Ni 1’000 or NTC
– High precision and flexibility thanks to 2-, 3- or 4-wire connection technology
– Adjustable at 2 points for each probe
– Big and clear LCDisplay, robust design
– High precision analogue output (U and I)
– 2 point control incl. relay output 230Vfor temperature control or alarm
– Intuitive menu structure with password protection system
– Scalable analogue output
– Simple installation
Technical specifications
Optional sensors: PT100, PT1000, Ni1000 or NTC
PT100 Temperature: -50 ... + 400 ° C
PT1000 Temperature: -50 ... + 400 ° C
Ni 1000 Temperature: -50 ... + 200 ° C
NTC - BetaTherm 30k: -20 ... + 80 ° C
High precision analog output: 0/2 ... 10VDC and 0/4 ... 20 mA
Supply voltage: 24 VDC +/- 25%
Relay OUT: NO / NC, 260V 2A
