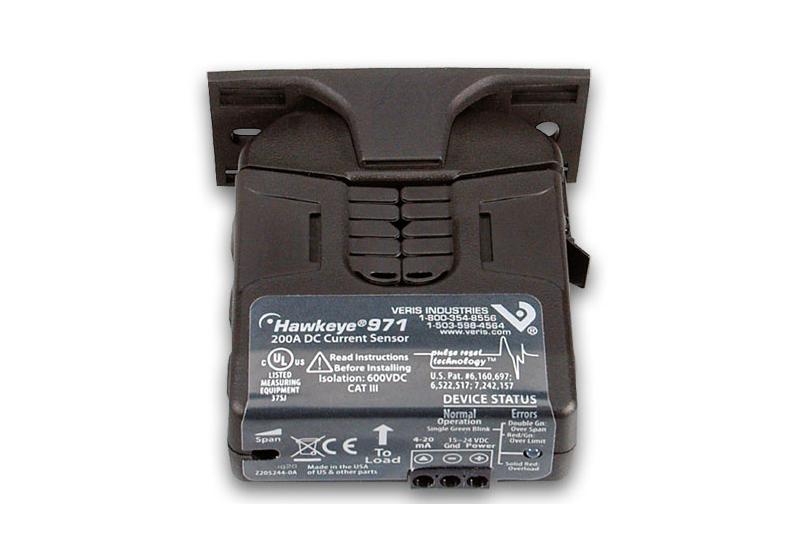

Split-Core Bi-Polar DC Transducer sensor that measures up to 200 Amps of DC current in both flow directions.
Requires analog port selection during U30 system configuration and use of a S-FS-CVIA when using the H22-001 logger.
When using a U12 logger, this sensor requires a 4-20mA input cable (CABLE-4-20mA) and external power provided by an AC adapter (AC-SENS-1).
Environment: Indoor environments
Measurements: DC Current
Range: +/- 2 to +/- 200 (via span adjust)
Accuracy: Accuracy (below 100A span): +/- .5 A
Accuracy (above 100A span): +/- .5% full scale
Compatible Data Loggers: U30-NRC-SYS-B, U12-012, U12-013, U12-006, U12-008, H22-001 , U30-NRC, U30-GSM, U30-WIF, U30-ETH, ZW-005, ZW-007, ZW-006, ZW-008
Compatible Sensor: S-FS-CVIA
Additional information: Measures current flow in both directions which is especially beneficial for Solar PV applications.
Adjustable span range
Small size, split-core for ease of installation
Note: For measurements larger than 120A the device must be powered by a minimum of 15V to maintain expected accuracy.
