Optional with calibration
Ask our productspecialists
Contact us for more information
Private: Quantadat – Novasina
Key features of the HygroDat-200 / QUANTADAT Intelligent (nsens) Sensor with Calibration data in the…
View product

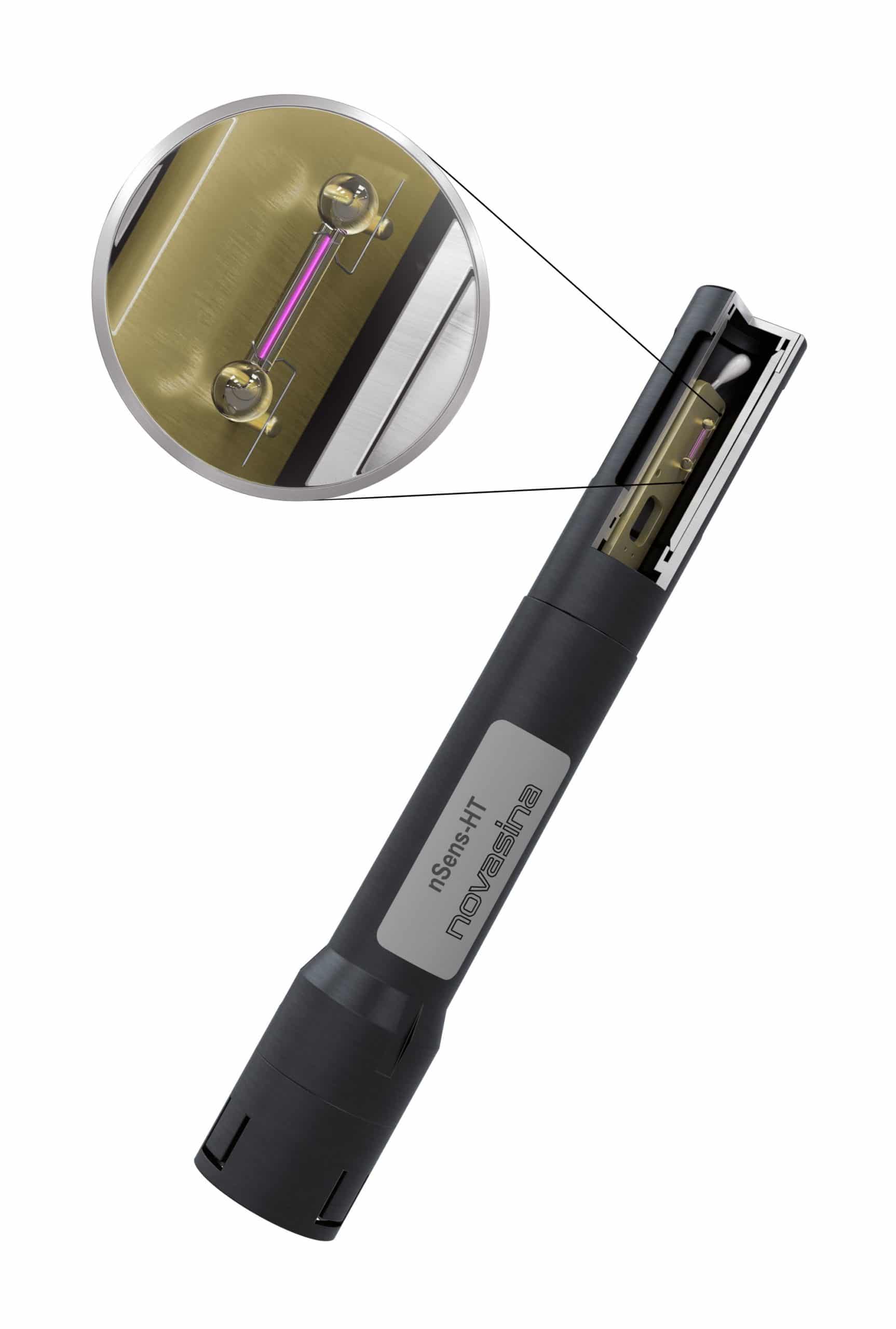

nSens-HT-ENS – Novasina
High accuracy, exchangeable Humidity and temperature sensor with integrated calibration.
Uitlopend (wordt vervangen door nSens-HT-EIS)
This unique humidity and temperature sensor offers an accuracy of ±0.5% RH, making it ideally suited for use in cleanrooms, operating theatres, climate chambers and the pharmaceutical industry. Thanks to its unique measurement principle, the sensor achieves an accuracy of ±0.5% RH across the entire measurement range from 5 to 100% RH. This also makes it the ideal solution for RH measurements in germination chambers, vertical farming facilities and other high-humidity applications.
The replaceable sensing element offers significant savings in the time and costs associated with annual maintenance and calibration. It helps prevent climate control systems from being disrupted during calibration and reduces calibration costs. In addition, the operating theatre or cleanroom can remain operational.

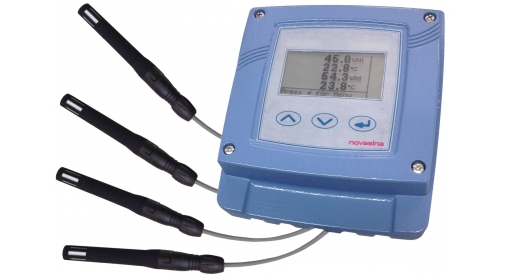

The nSens requires a transmitter. The most suitable transmitter depends on the specific application. Available options include the nlinkIP and the nlinkEC.
Download Climate Launcher
Use Climate Launcher to manage your Novasina nSens, retrieve measurement data, and configure alarms and settings directly from your PC.
Technical specifications
Measuring range: 0..100% RH: -20 .. 80°C (other ranges programmable)
Accuracy: 0,5% RH: 0,1°C
Analogue output: 4..20mA, 0..20mA, 0..10V (in combination with Quantadat or NLink)
Digital output: Modbus RTU (in combination with nLink-Modbus)
Power supply: 24VDC or 24VAC
Process temperature: -20 .. 80°C
