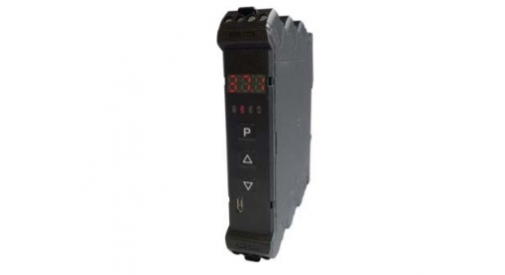

MH-1U Universal Transmitter

The MH-1U is a versatile universal transmitter designed for top-hat rail mounting, featuring a 3-digit digital display. It offers multi-parameter measurement capabilities and flexible configuration options.

Key Features:

• 3-digit red LED display
• Measures voltage, current, temperature, and frequency
• Top-hat rail mounting design
• Universal transmitter functionality
• Configurable via 3 front buttons or optional PC software (PM-TOOL)

Measurement Inputs:

• Direct voltage
• Direct current
• Pt100/Pt1000 temperature sensors
• Thermocouples
• Frequency
• Rotational speed
• Counter

Display Features:

• Digit height: approximately 7mm
• Min/max value recording
• 9 adjustable supporting points
• Display flashing for threshold value exceedance/undercut
• Tara function
• Programming interlock via access code

Optional Expansions:

• Analog output: 0-10 VDC, 0/4-20 mA (switchable)
• Interfaces: RS232 / RS485 (Modbus protocol) / Bluetooth
• Sensor supply with digital input
• 2 relay outputs / 2 PhotoMos-outputs / 2 relay outputs & 2 PhotoMos-outputs
• Data logger functionality

Configuration:

• Via 3 front buttons
• Optional PC-based configuration kit (PM-TOOL) with CD & USB adapter

The MH-1U universal transmitter offers a compact and flexible solution for various industrial measurement and control applications, with its ability to handle multiple input types and optional expansions for increased functionality.
