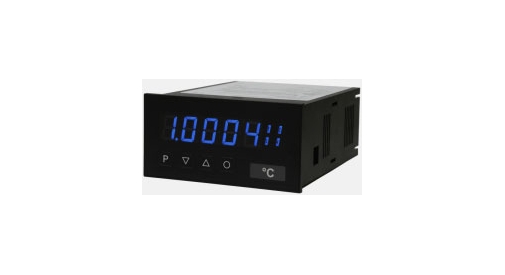

M3 – 96×48

Panel meter for DC voltage / current, high DC voltage, AC voltage, high AC voltage, shunt, frequency, Potentiometer, resistance, PT-100, thermocouple, DMS mass pressure, DMS weighing technology

Digital panel meter for installation in standard DIN-sizes. Available with a variety of inputs, outputs and supply voltages.
The display can be configured using 3 front buttons.
Accessories: PC-based configuration kit PM-TOOL with CD & USB adapter for instruments without keypad and for easy setting of standard instruments

Technical specifications

Direct current: 0/4 ... 20 mA

DC voltage: 0 ... 10 VDC

AC voltage: 300 VAC / 600 VAC

Alternating current: 1 AAC / 5 AAC

Shunt: 0 ... 60 mV: 0 ... 150 mV

Potentiometer:> 1 kOhm .... 10 kOhm

Resistance: 0-1 kOhm, 0-10 kOhm, 0-100 kOhm, 0-1000 kOhm

Pt100 2- / 3-wire: -200 ° C ... 850 ° C

Thermocouple: Type L, J, K, B, S, N, E, T, R

Frequency: 0.01Hz to 999.99 kHz / PNP / NPN, digital

DMS / Mass pressure: 1 mV / V, 2 mV / V, 3.3 mV / V free to 4 mV / V

DMS / weighing technique: 1mV / V, 2 mV / V, 3.3 mV / V free up to 4 mV / V

Relay: 2x change

Output: RS-232, RS-485, 0/4-20mA, 0-10VDC

Sensor supply: 10VDC / 24VDC

Power Supply: 24 VDC galv. separate / 230 VAC

Dimensions: 96x48x38 mm incl. Plug-in terminal

Display colors: Red, Green, Orange or blue

Display: 5-digit, -19999 ... 99999, 14 mm

Protection class: IP65

CheckOptional with calibration
