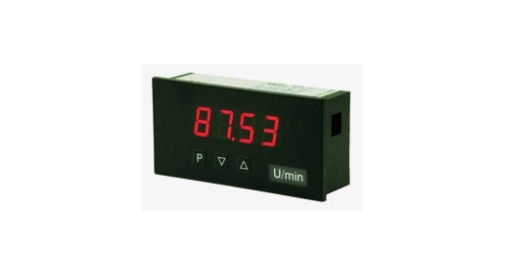

M1-S – 96×48 loop powered

Panel meter with direct current

The M1-S is a 4-digit, mains-independent display for connecting a 4-20 mA current loop and for visual limit value monitoring via the display. Here the configuration takes place via 3 front buttons or using the optional PC software PM-TOOL. Two switching points (closer) are optionally available. Selectable software functions, one
This device is characterized by direct limit value adjustment in operating mode and the low installation depth of just 38 mm.

Technical specifications

Direct current: 0/4 ... 20 mA

Dimensions: 96x48x38 mm incl. Plug-in terminal

Display colors: Red, Green, Orange, Blue

Display: 4-digit, -1999 ... 9999, 14 mm

Protection class: IP65

CheckOptional with calibration

Read more
