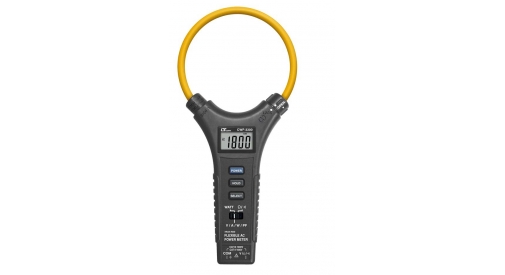

CWF-3300 – Lutron
Flexible 3000 Amp probe
FEATURES :
* True Power ( KW ) measurement.
* Power Factor ( PF ) measurement.
* Apparent Power ( KVA ) measurement.
* Reactive Power ( KVAR ) measurement.
* ACA, ACV, Continuity, ohms, Watt, PF.
* AC Current, auto range .
* Voltage range : 600 ACV.
* Voltage and Current measurement are the True
RMS value.
* Heavy duty, CATIII-1000V, 6,000 counts.
Technical specifications
ACV (true RMS): 10 to 600V
ACA (trrue RMS): 999.9 A / 3000 A
W / VA / VAR: 999.9 / 9.999K / 99.99K / 999.9K / 1800K (W / VA / VAR)
Power factor: 0.00 to 1.00
Ohms: 20 KΩ
Flexible cable length: 280 mm (11 inch).
Flexible cable diameter: 8 mm.
Size: 290 x 135 x 27.8 mm.
Power Supply: DC 1.5V battery (UM-4, AAA) x 2.
