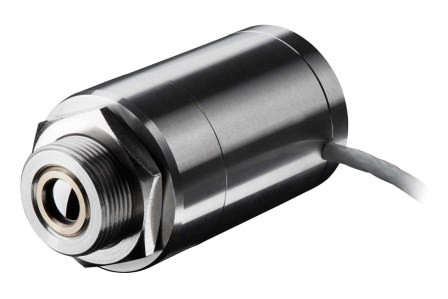

CTLTHot – Optris
Precise non-contact infrared temperature measurement from –40 °C ... 975 °C in rough enviromental conditions.
One of the smallest infrared sensors worldwide . With the electronicbox it’s very easy to select an output signal. The sensorhead can be used in very high ambient temperatures up to 250 °C which makes it suitable for heavy industrial applications. The infraredsensor is available in different optical resolutions, cable lengths and digital interfaces.
Technical specifications
Spectral range: 8 - 14 μm
Temperature range: -40°C to 975°C
Optical resolution: 10:1 / 2:1
Smallest spot: 1,2 mm @ 10 mm (with LT10H)
Ambient temperature: –40 °C ... 250 °C (sensing head)
Outputs/analog: :0/4 – 20 mA, 0 – 5/ 10 V, thermocouple J, K
Outputs/digital: USB, RS232, RS485, CAN, Profibus DP, Ethernet (optional)
