Infrared laser thermometer for measurement of thin glass from 100 °C to 1200 °C

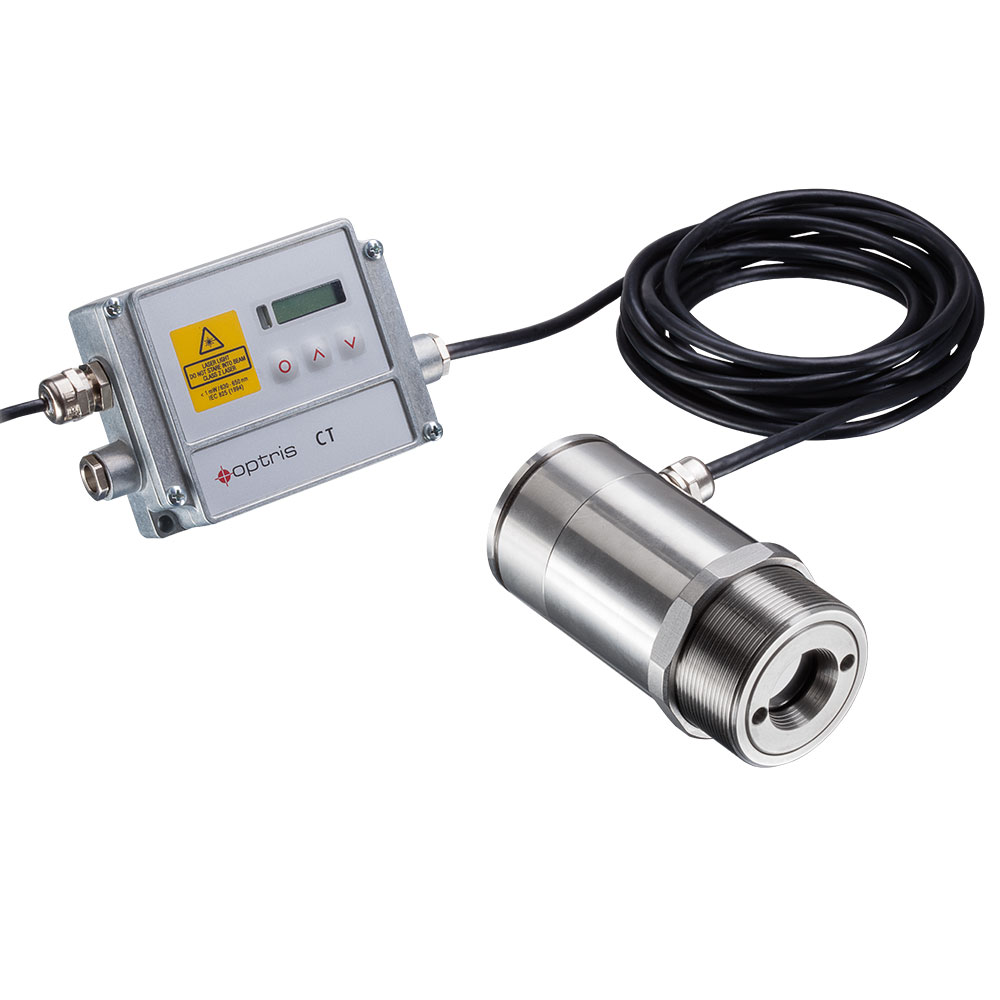

The infrared thermometer optris CTlaser G7 is perfectly suited for precise temperature measurement of ultra-thin glass surfaces. It offers a broad temperature range from 100 °C up to 1200 °C and can be employed in temperatures of up to 85°C without additional cooling.
The IR thermometer for measurements of plastic foils and glass temperatures is capable of targeting smallest objects of 1.6 mm (0.06 in) in a distance of 70 mm (2.76 in). Its standardized two-wire interface additionally allows for a reliable transfer of measurement data and easy integration into a PLC

Technical specifications

Spectral range: 7.9 μm

Temperature range: 100°C to 1200°C

Optical resolution: 45:1

Smallest spot (CF optics): 1,6 mm @ 70 mm

Ambient temperature: 85°C (sensing head)

Outputs/analog: 0/4 – 20 mA, 0 – 5/ 10 V, thermocouple J, K

Outputs/digital: USB, RS232, RS485, CAN, Profibus DP, Ethernet (optional)

CheckOptional with calibration
