CTL-G5 – Optris

Infrared laser thermometer for measurement of glass from 100 °C to 1650 °C

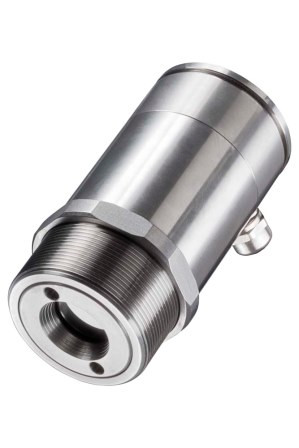

The infrared thermometer optris CTlaser G5 has been specifically designed for measurement of glass temperatures, especially for container glass, lightbulb production, vehicle glass production as well as in the manufacturing of solar cells.
Last but not least, the IR thermometer optris CTlaser G5 allows for temperature measurement of smallest objects of 1 mm from a distance of 70 mm.

Technical specifications

Spectral range: 5.0 μm

Temperature range: 100°C to 1650°C

Optical resolution: 45:1 (L/H1F), 70:1 (H)

Smallest spot (CF optics): 1 mm @ 70 mm

Ambient temperature: 85°C (sensing head)

Outputs/analog: 0/4 – 20 mA, 0 – 5/ 10 V, thermocouple J, K

Outputs/digital: USB, RS232, RS485, CAN, Profibus DP, Ethernet (optional)

CheckOptional with calibration
