CT-P7-Optris

Precise non-contact infrared temperature measurement for plastics from 0 °C ... 710 °C.

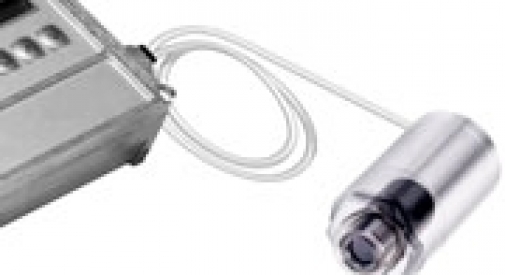

This sensor is specially developt for measuring plastics and thin plastic film material like PET, PU, PTFE, PA. By measuring at a spectral range of 7.9 μm it is very easy to measure these surfaces. With the electronicbox it’s very easy to select an output signal. The sensorhead can be used in very high ambient temperatures which makes it suitable for industrial applications. The infraredsensor is available in different optical resolutions, cable lengths and digital interfaces.

Technical specifications

Spectral range: 7.9 μm

Temperature range: 0°C to 710°C

Optical resolution: 10:1

Smallest spot: 1.2 mm @ 10 mm

Ambient temperature: –20 °C ... 85 °C (sensing head) –40 °C ... 85 °C (electronics)

Outputs/analog: 0/4 – 20 mA, 0 – 5/ 10 V, thermocouple J, K, alarm output

Outputs/digital: USB, RS232, RS485, CAN, Profibus DP, Ethernet (optional)

CheckOptional with calibration
