BK-SERIE
clamp temperature sensor

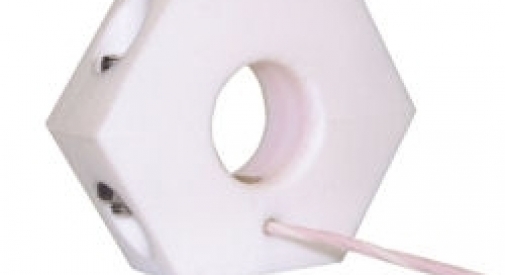

We make this pipe clamp sensor especially for temperature measurement directly on pipes, tubes, etc. The sensor consists of two parts that are screwed around the tube, and thus ensure a solid whole and accurate measurement. In addition to the model shown, various other (customer-specific) types are possible, inquire about the possibilities.
Technical specifications
Measuring element: PT100, PT1000, Thermocouple J and K
Measuring system: Single or Duplex version in 2 or 3-conductor technology
Temperature range: Standard range up to max. 250 ° C
Material: PTFE housing, Brass measuring surface, Stainless steel mounting material
Dimensions: As stated when ordering. Available as standard in tube diameters 3 to 60 mm, other sizes customer-specific in the desired length and diameter
Connection cable: Standard 2 meter PTFE cable, other lengths and types on request
IP standard: IP-65
