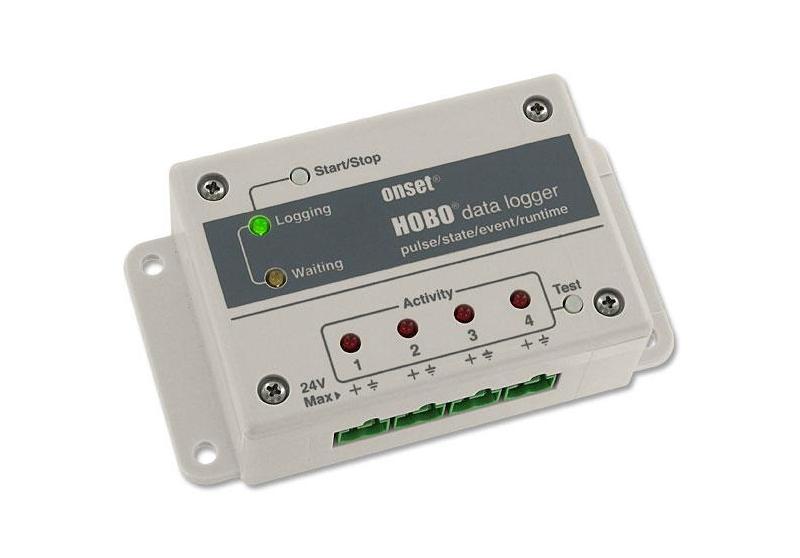

UX120-017

4-channel puls data logger

The Hobo UX120-017 pulse logger is a versatile. The HOBO UX120 Pulse Logger is available in a standard memory model (UX120-017) capable of 500,000 measurements and an expanded memory version (UX120-017M) capable of over 4,000,000 measurements. 4-channel energy data logger, the UX120 combines the functionality of four seprate loggers into one compact unit. It allow the user to easily keep track of energy consumption run time, water and gas flow rates.

Technical specifications

Environment: Indoor

Measurements: AC Current, AC Voltage, Amp-Hour (Ah), Ampere (A), Event, Kilowatt Hour (kWh), Kilowatt (kW), Motor On / Off, Power Factor (PF), Pulse Input, Runtime , Open / Closed State, Volt-Amp Reactive (VAR), Volt-Amp Reactive Hour (VARh), Volt-Ampere (VA), Volt (V), Watt-hours (Wh), Watt (W)

Other specifications: Simultaneously measures and records pulse signals, events, state changes and run times

Stores up to 4 million measurements, enabling longer deployments with fewer site visits,

120 Hz, 0 to 24 VDC

Streamlines implementation through a range of start / stop options, logger status LEDs.

Works with Onset's Energy: Power meter to measure power factor (PF), reactive power (VAR), watt hours (Wh)

CheckOptional with calibration
