PI 640i MO2X – Microscope Optics with 2x Magnification

De Optris PI 640i Thermal Imaging Camera Microscoopkit is een geavanceerd systeem dat specifiek is ontworpen om gedetailleerde thermische beelden en metingen te leveren op microschaal.

Nieuw

Download the brochure

Advanced Thermal Imaging for Microscopic Analysis

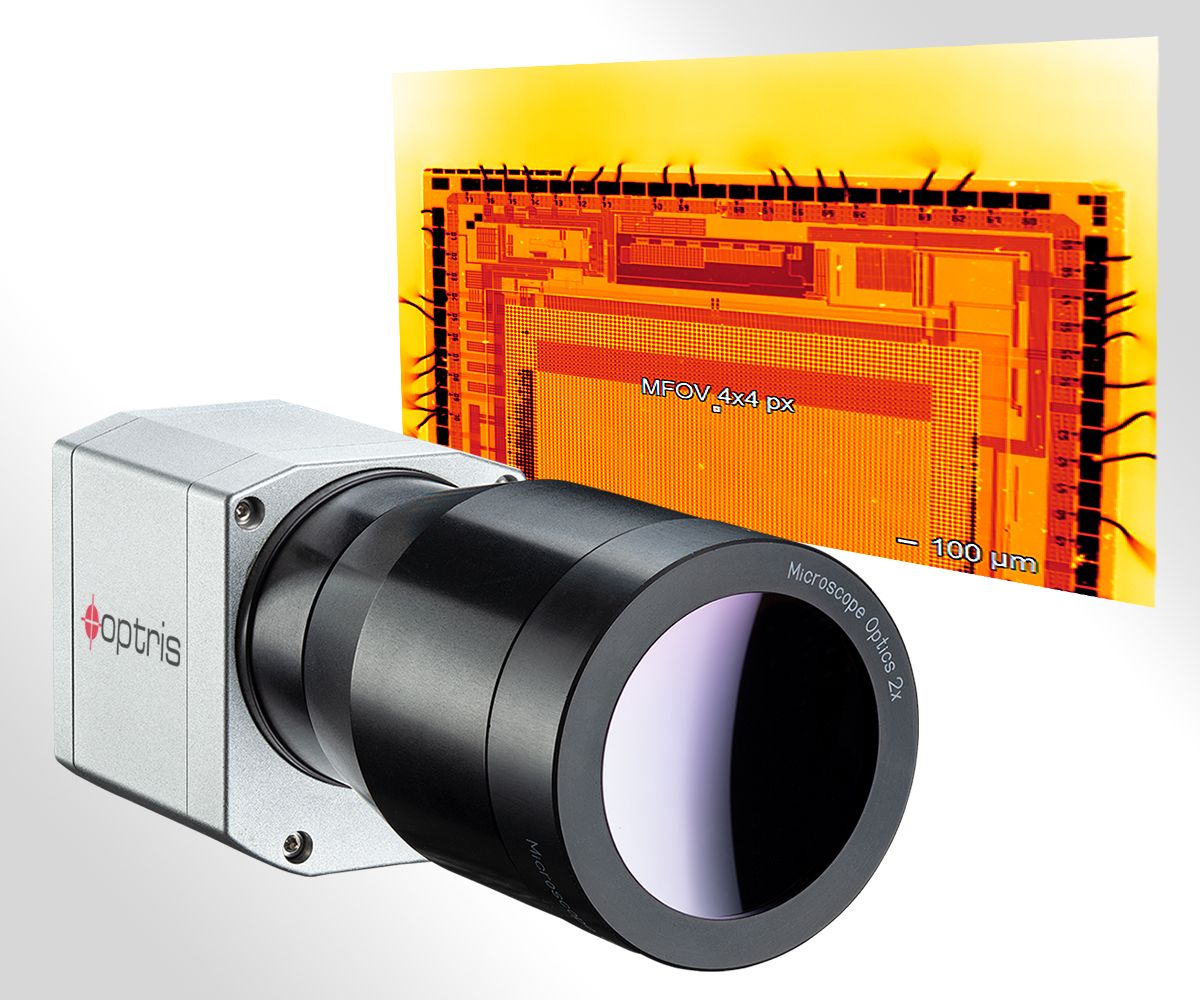

The PI 640i MO2X is a groundbreaking addition to our thermal imaging lineup, designed specifically for high-precision thermal analysis at the chip level. With its 2x magnification and ultra-fine pixel size, this microscope optics system opens up new possibilities for the electronics industry.![PI 640i MO2X Image]

Key Features

Ultra-Fine Pixel Size: 8 µm at the object plane for unparalleled detail
2x Magnification: Ideal for analyzing tiny electronic components

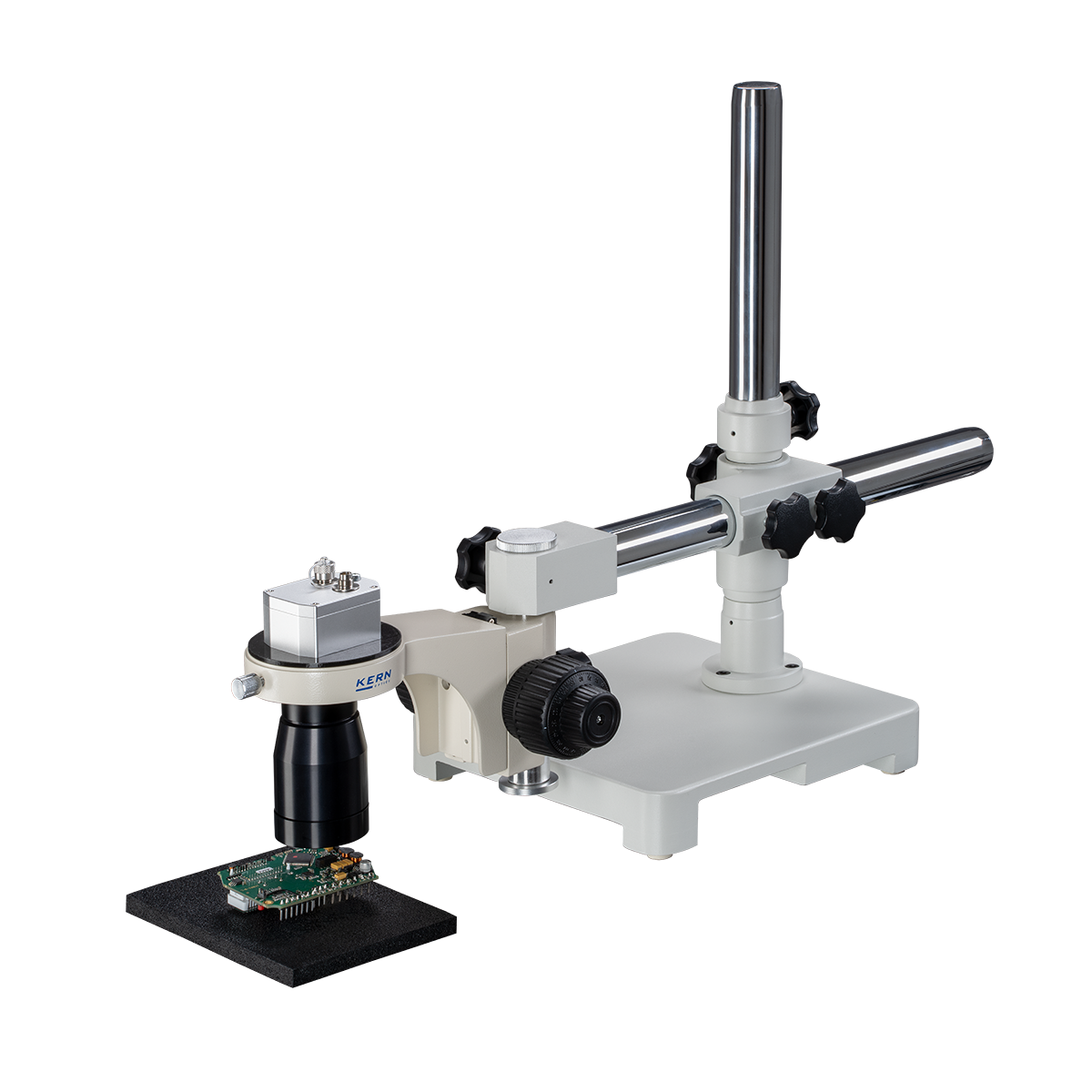

Premium Microscope Stand: Equipped with coarse and fine drive for precise adjustments
Complete Package: Includes base plate with ESD pad and standard microscope stand
Dual Solution: Part of a comprehensive thermal imaging package for the electronics industry

Technical Specifications

Magnification: 2x
Pixel Size: 8 µm at object plane
Compatibility: PI 640i thermal imaging camera
Stand Type: Premium microscope stand with coarse and fine drive
Additional Accessories: Base plate with ESD pad, standard microscope stand

Applications

Microelectronics thermal analysis
PCB inspection and troubleshooting
Semiconductor device testing
Quality control in electronics manufacturing
Research and development in microelectronics

Benefits

Enhanced Detail: Ultra-fine pixel size reveals thermal patterns in microscopic components
Versatility: Combine with standard optics for full PCB analysis
Precision Control: Premium stand allows for exact positioning and focus
ESD Protection: Included ESD pad safeguards sensitive electronics
Comprehensive Solution: Part of a dual-option package for diverse electronic imaging needs

Package Includes

PI 640i MO2X Microscope Optics
Premium microscope stand with coarse and fine drive
Base plate with ESD pad
Standard microscope stand
User manual and calibration certificate

The PI 640i MO2X Microscope Optics represents a significant advancement in thermal imaging technology for the electronics industry. Whether you’re analyzing individual chips or entire PCBs, this system provides the precision and versatility needed for cutting-edge thermal analysis.

Technical specifications

Inhoud van de Set:

Thermische beeldcamera Optris PI 640i

Microscoopoptiek MO44 of MO2X

Standaard USB-kabel (1 m)

Standaard procesinterface

Handleiding Optris PI camera

Standaard PIF

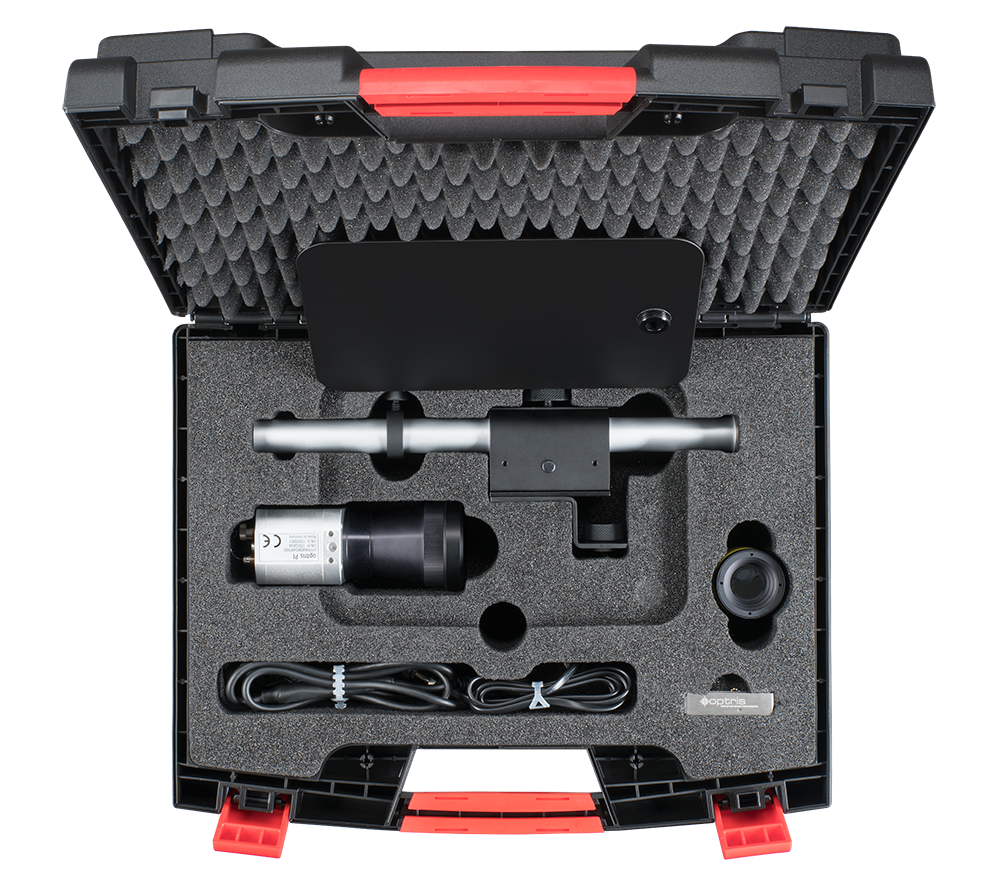

Stevige buitentransportkoffer

Softwarepakket Optris PIX Connect op USB-flashstation

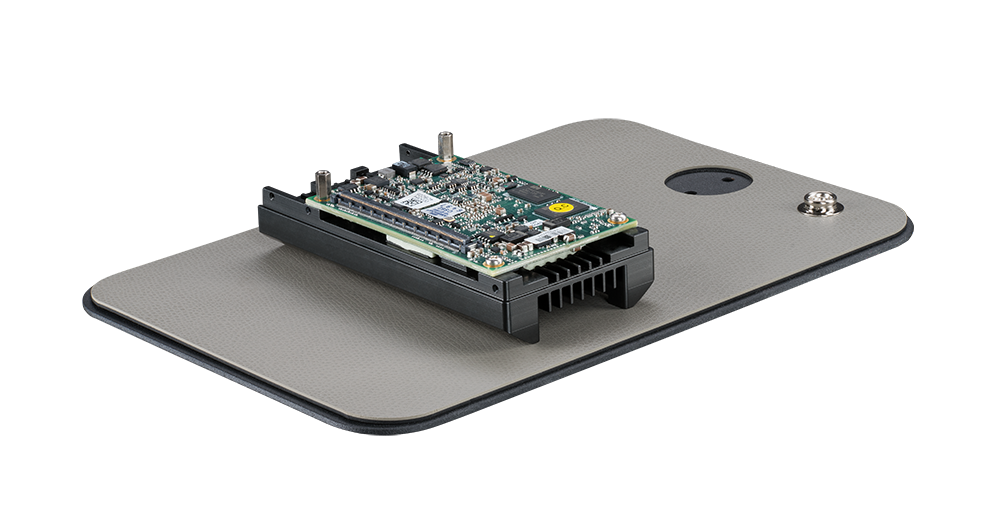

Basisplaat met ESD-pad (MO2X)

Microscoopstandaard (MO44) of Premium microscoopstandaard met grove en fijne aandrijving en adapter voor PI-camera (MO2X)

Technische Specificaties Optris PI Microscoopkit:

Minimale Spotgrootte:

MO44: 28 µm

MO2X: 8 µm

Microscoopoptiek (FOV):

MO44: 20.0 x 14.0 mm (F=1.1) / f= 44 mm

MO2X: 5.4 x 4.0 mm (F=1.3)/ f=60 mm

Werkafstand:

MO44: 80 – 100 mm

MO2X: 15 mm

Temperatuurbereik (instelbaar): –20 … 100 °C, 0 … 250 °C, 150 … 900 °C

Detector: FPA, 640 x 480 pixels @ 32 Hz of 640 x 120 pixels @ 125 Hz

Spectraal bereik: 8 – 14 µm

Systeemnauwkeurigheid: ±2 °C of ±2 %, afhankelijk van wat groter is

Temperatuurresolutie (NETD): 80 mK

PC-interface: USB 2.0

Standaard Procesinterface (PIF): 0–10 V invoer, digitale invoer (max. 24 V), 0–10 V uitvoer

Industriële Procesinterface (IPF): 2x 0–10 V invoer, digitale invoer (max. 24 V), 3x 0–10 V uitvoer, 3x relais (0–30 V / 400 mA), fail safe relais

Kabellengte (USB): Standaard 1 m, beschikbaar tot 20 m

Omgevingstemperatuur: 0 … 50 °C

Opslagtemperatuur: –40 … 70 °C

Relatieve Vochtigheid: 10 – 95 %, niet-condenserend

Behuizing (grootte / classificatie): IP 67 (NEMA 4)

Gewicht: 370 g (MO44), 410 g (MO2X)

Schok/Vibratie: Voldoet aan IEC 60068-2 normen

Driepootmontage: 1/4 – 20 UNC

Voeding via USB

Emissiviteit: 0.100…1.100

Software: Optris PIX Connect / SDK's voor Windows en Linux
