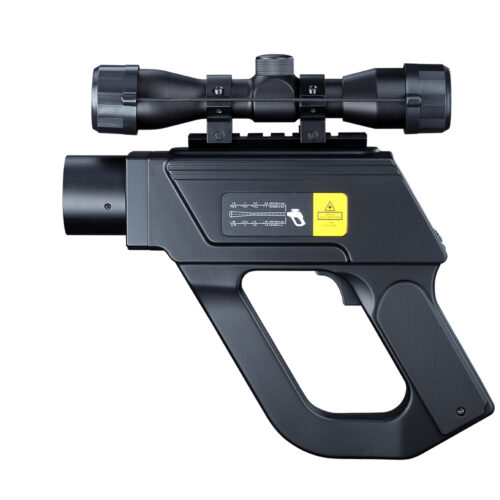

Infrared handheld thermometer for demanding applications, 0°C to 1300°C

The portable thermometer optris P20 LT has been specialized for your assistance in elaborating portable measurement tasks on non-metallic surfaces. It is specifically suited for temperature measurements requiring only sporadic and punctual execution.

Being a highly specialized industrial thermometer it measures temperatures of up to 1,300°C, occurring e.g. in refractory linings of melting troughs. The P20 LT allows for temperature control in the mentioned spots and in many other places.

Technical specifications

Temperature ranges: 0 to 1300°C

Spectral range: 8 - 14 µm

Optical resolution: 120:1

System accuracy: (at Tamb = 23 ± 5°C) ±1% or ±2°C

Response time: 300 ms

Emissivity (adjustable): 0.100 - 1.000

Sighting Double laser class II (<1 mW)

Sighting scope: yes

Signal processing: MAX/MIN, Scan/Hold function

Alarm functions: Audible and visible HIGH/LOW alarm

Data storage: 2000 values
