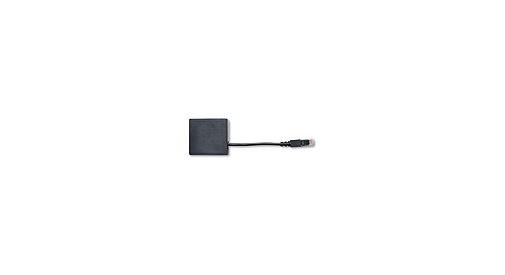

Hobo S-BPA-CM10 – Onset
Barometric pressure sensor compatibel with the H22 data logger
The barometric pressure sensor provides average barometric pressure for each data logging interval over the range of 660 mb to 1070 mb (19,47 to 31,55 inHg). The operating temperature range for this sensor is -40° to 70°C: sensor survival is supported from -20° to +70°C. This specialized smart sensor must be used inside a data logger enclosure to assure protection from direct exposure to the weather.
This is a specialized smart sensor with and is compatible with H22 data loggers. This sensor operates in an outdoor environment and the sensor supports the following measurement: barometric pressure.
Technical specifications
Measurement parameters: average over logging interval, user-defined sampling interval from 1 second
Measurement range: 660 mb to 1070 mb (19.47 to 31.55 in. Hg)
Operating temperature range: -40° to 70°C
Accuracy: ±3.0 mbar (0.088 in. Hg) over full pressure range at 25°C: maximum error of ±5.0 mbar (0.148 in. Hg) over -40° to 70°C
Drift: typical ±0.6 mb (0.018 in. Hg) per year, maximum <2,5 mb (0.074 in. Hg) per six months
Cable length: 10 cm
Note: this data logger must be used inside logger enclosure to assure protection from direct exposure to the weather.
