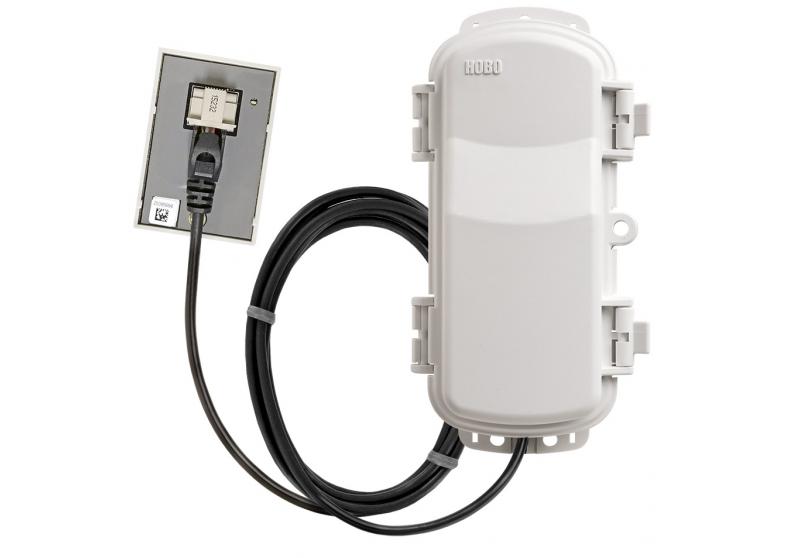

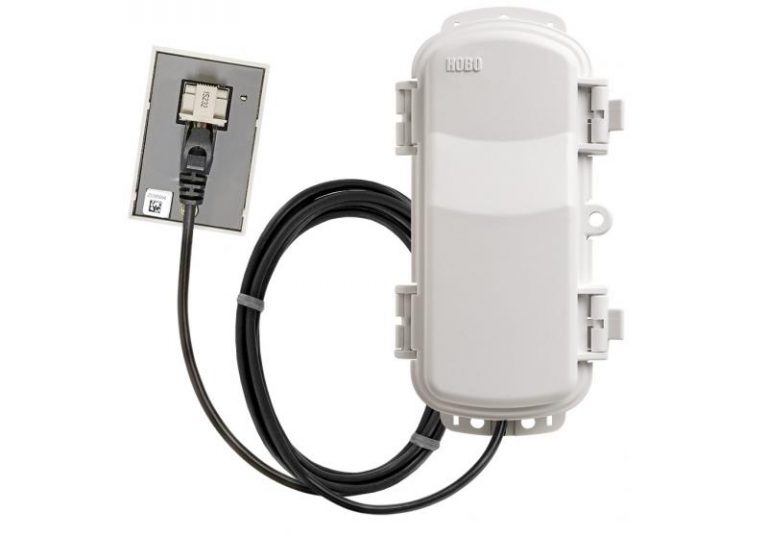

Hobo RXW-UCD-xxx – Onset

HOBOnet pulse input sensor, compatible with contact closures such as tipping-bucket rain gauges or reed switches for a complete system requires at least one Hobo RX3000 monitoring station with a HOBOnet wireless manager (RXMOD-RXW-xxx) or one Hobo MicroRX station (which has an integrated HOBOnet wireless manager).

The HOBOnet wireless pulse input sensor connects to sensors with pulse output. This sensor is compatible with contact closures, such as tipping-bucket rain gauges or reed switches. HOBOnet wireless sensors communicate data directly to the Hobo RX3000 or the Hobo MicroRX station, or pass data through other wireless sensors back to the central station. They are preconfigured and ready to deploy and data is accessed through HOBOlink, Onset’s innovative cloud-based software platform.

The maximum input frequency is 2 Hz (2 pulses per second) for mechanical contact closure. It has a wireless signal range up to 450 to 600 meter and up to five hops, the HOBOnet wireless repeaters (RXW-RPTR-xxx or RXW-RPTR-B-xxx) can be added to extend the range. You can add up to 50 wireless sensors or 336 data channels per Hobo RX station. A simple button push makes sure to join the HOBOnet wireless network and it has an onboard memory to ensure no data loss. It is powered by rechargeable AA batteries and built-in solar panel. This sensor operates in an outdoor environment and the RXW-UCD-xxx sensor supports the following measurements: pulse input.

Technical specifications

Measurement input frequency: 2 Hz (2 pulses per second)

Measurement range: 0-65.533 pulses per logging interval

Resolution: 1 pulse

Maximum input voltage: 3,6 Volt

Operating temperature range: -25° to 60°C with rechargeable batteries, -40 to 70°C with lithium batteries

Transmission range: up to 457,2 meter line of sight at 1,8 meters high

Maximum number of motes: up to 50 wireless sensors or 336 data channels per one Hobo RX station

Logging rate: 1 minute to 18 hours

Number of channels: 2

Battery type: two AA 1,2 Volt rechargeable NiMH batteries powered by built-in solar panel or two AA 1,5 Volt lithium batteries for operating conditions of -40 to 70°C

Battery life: with NiMH batteries: 3-5 years when operated in the temperature range -20° to 40°C, with lithium batteries: 1 year

Memory: 16 MB

Cable length: 6,5 meters

Environmental rating: mote: IP67, NEMA 6

CheckOptional with calibration
