Hobo M-TPA-KIT – Onset

Tripod fully equipped kit (3 meters), compatible with all U30-, H21- and RX- base/weather stations

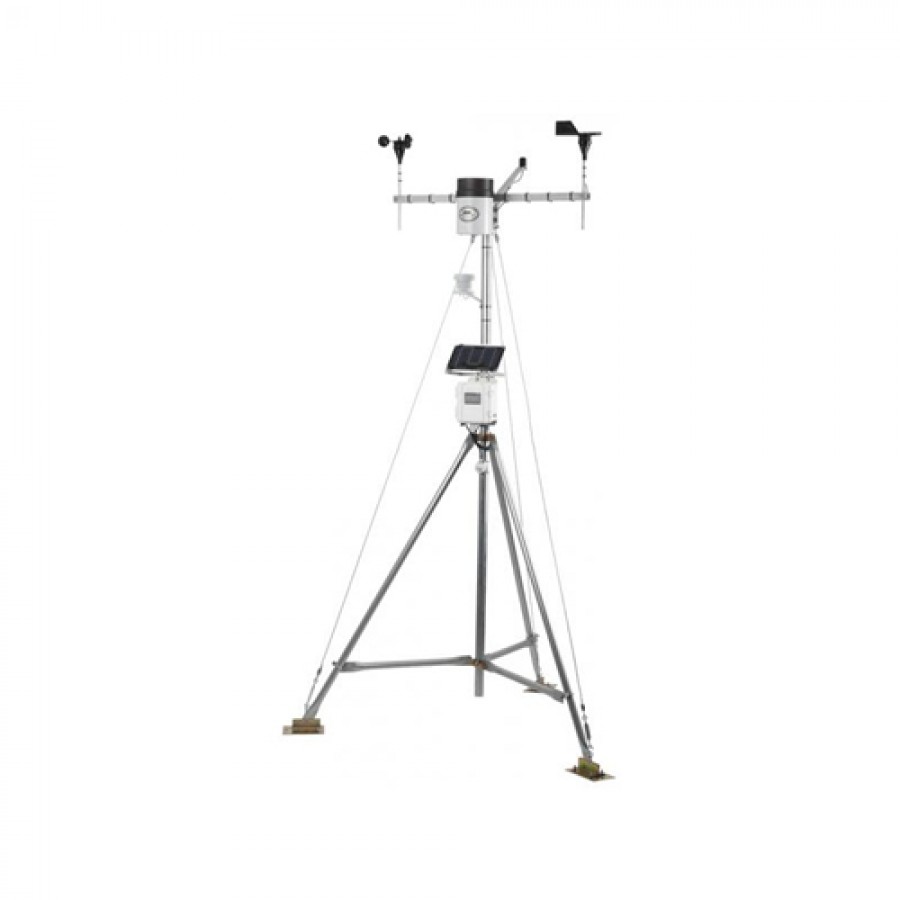

This 3-meter tripod kit has everything you need for a weather station configuration. This tripod kit can be used for mounting data loggers and other sensors for a weather station application. This tripod can be placed on any slope less than 13 degrees. In combination with the cross arms (for mounting wind speed and wind direction sensors), the data logger (U30, H21 or RX- station), the additional sensors and a radiation shield, you can build a fully equipped weather station for your application in the field or for example in your geenhouse. This tripod is built weather proof and makes sure a firm mounting of your data logger out in the open.

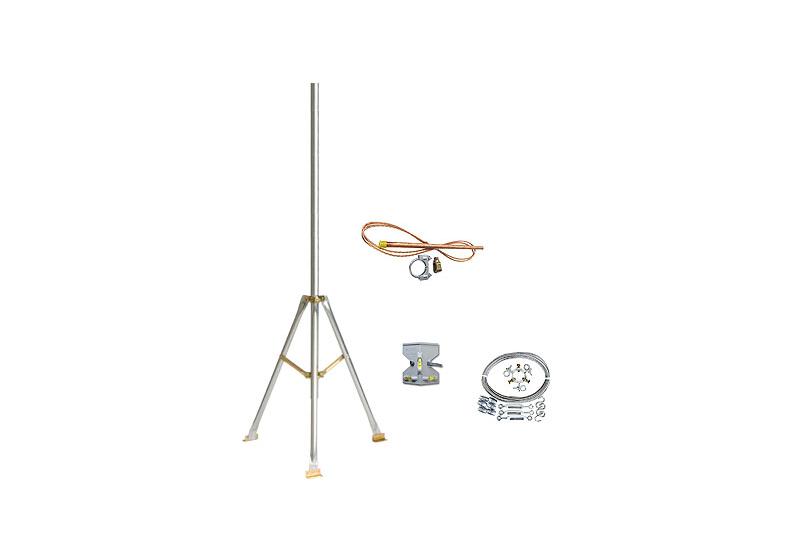

The kit includes a 3-meter tripod (M-TPA), grounding kit (M-GKA), guy wire kit (M-GWA), 1,27 centimeters stake kit (M-SKA) for the guy wires/tripod and the mast level (M-MLA).
Note: if you want to extend the guy wire out past the feet on the tripod, you can purchase another 1,27 centimeters stake kit (M-SKA).

Technical specifications

Cross arm height range: 2,74 to 3,20 meters

Leg height (to top of legs): 1,32 meters

Mast diameter: 4,1 centimeters

Tripod footprint: 91 centimeters

Weight: 12,7 kilograms

Maxium slope: 13° for installation on moderately uneven ground

Feel free to ask us your question!

Do you have a question or would you like to request a quote? Please contact us by phone or send us an e-mail.
