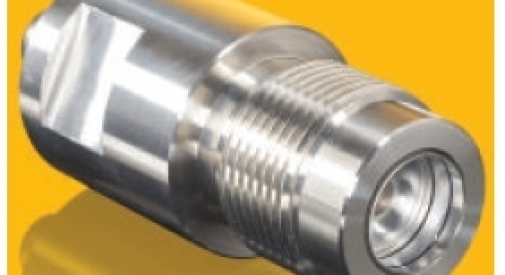

UV-WATER-G3/4”
UV sensor 10 bar water pressure proof
The sensor UV-Water is a water proof (10 bar or 150 psi) UV sensor to be included into pressurized water systems (G1/4” thread). This UV sensor is suited for use in food and beverages machinery. On request it is available in a submersible version. Available calibrated (NIST or PTB traceable) on request
Technical specifications
Spectral Sensitivity: Broadband UV, UVA, UVB, UVC, UV-Index, Bluelight and UV+VIS
Signal Output: 0 to 5 V or 4 to 20 mA or CAN bus signal (125kbit/s) or USB
Current Consumption: for 0 to 5 V = < 30 mA / for 4 to 20 mA = signal out / digital = < 17 mA
Connections: cable = 2 m cable with tinned leads on free end
plug = 5 pin male connector with 2 m cable with tinned leads on free end
CAN = 2 m cable with 8 pin male connector (to converter or else)
USB = with 1.5 m cable with USB-A plug
Measuring Range: between 1 nW/cm2 to 1 µW/cm2 and 20 mW/cm2 to 20 W/cm2 for analog or 100 µW/cm2 to 20 W/cm2 for digital sensors (see questionaire sheet)
