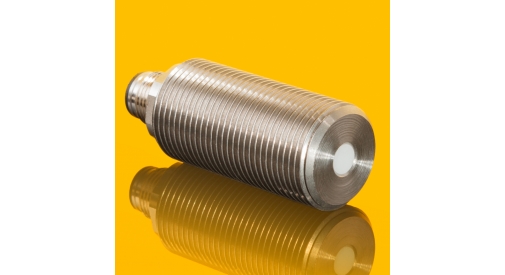

UV-AIR

Standard axis oriented in-chamber UV Sensor

The sensor UV-Air is a cosine corrected axial looking UV sensor with a male thread (M22x1,5) with many mounting possibilities inside UV radiation chambers. Available calibrated (NIST or PTB traceable) on request.
The probe is amplified and shielded against electromagnetic interference. The visible blind sensors are based on a Silicon Carbide (SiC) UV photodiode, which guarantees highest radiation hardness, long term stability and >1010 visible blindness (ratio of UV to VIS-IR sensitivity). Blue and GaP type sensors are based on a Galliumphosphide (GaP) UV photodiode.

Technical specifications

Absolute Sensitivity: 1nW/cm2 … 10W/cm2

Spectral Sensitivity: UV-Broadband, UVA, UVB, UVC, UV-Index

Signal Output: 0…5V, 4…20mA, USB, impulse count

Connections: 2m cable or 2m cable with 5 pin male

connector type Lumberg PRSFM5

CheckOptional with calibration
