UNI TFT displays

Intelligent, easy programable, multi-functional display and 340 degrees viewing angle. This are some of the benefits from the new UNI TFT displays from EA.

UNI TFT displays

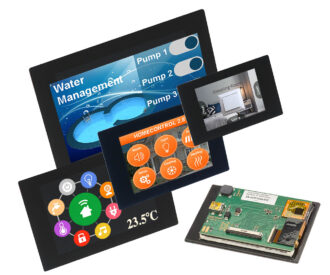

EA uniTFTs are a high-quality all-in-one implementation of the display, microcontroller unit, and touch screen. It is all users need to directly control their application and expedite development, prototyping, and deployment of their HMI/GUI. Design the HMI/GUI using the easy-to-use drag-and-drop uniTFTdesigner graphics development software

The EA uniTFTs series provides sophisticated graphical functions and intuitive menu control with its built-in instruction set. Thanks to the integrated instruction set and the Windows design software uniTFTDesigner, not only electronics specialists, but also experts in the field of design and user guidance are able to create the entire HMI.
The display modules are immediately ready for operation with 3.3 V, controlled via the built-in serial interfaces RS232, SPI, I2C or USB. The modules can be operated directly through the USB, too.
Object-oriented ”programming”, the wide set of commands, and the integrated but extensible Unicode fonts make ”time-to-market” a breeze.

Technical specifications

Data interface: I2C, RS-232, USB, SPI

Supply voltage: 3.3 volt

Operating temperature: -20 to +70 degrees

Viewing angle: 340 degrees!

Size in inch: Available in 2’’ to 4.3 inch.

Power consumption with backlight (mA): 115

Power consumption without backlight (mA): 269
