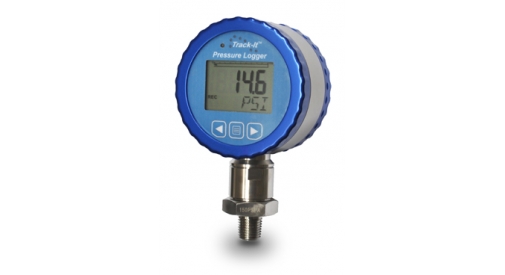

Track-It-Display

Pressure logger with display, for Absolute, Gauge or Vaccuum

The Track-it dataloggers are battery powered, stand-alone and waterproof, for the purposes of Pressure or temperature and vacuum or temperature.
Real time data, alarm and min/max information can be displayed on the LCD display. The unit is easy to configure using the included Track-It software. An alarm condition detection can be set. The Sample time can be set from 1 measurement every 2 seconds to 1 measurement every 24 hours. The data is stored on an EPROM so hat data is not lost when the battery is empty.
Track-it & trade:
Pressure/temp and vacuum/temp dataloggers are available in different versions. The logger has a robust waterproof, anodized aluminum and stainless steel housing.

Technical specifications

Record sample rates: user configured 1 every 2 seconds to 1 every 24 hours

Number of samples: 130,000 (setup dependent)

Alarms: 2 user-programmable alarms (high or low)

Pressure Ranges: 0-3, 0-35, 0-150, 0-350, 0-550, 0-2000, 0-5800, 0-8700, or 0-14,500 PSI

Vacuum Ranges: 0 to -380, 0 to -760, 760 to 0, and 760 to -760 Torr

Accuracy: ± 0.25%

Output: Isolated 4-20mA, +/-0.06% F.S.

CheckOptional with calibration
