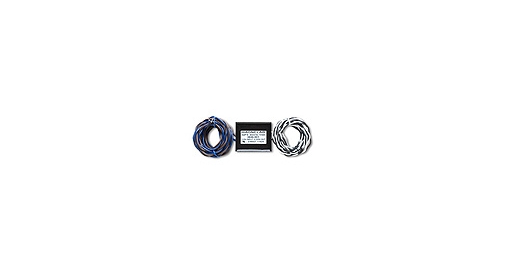

T-MAG-SPT-150

150 Volt AC Potential Transformer

The Magnelab 150-Volt AC Potential Transformer is used with the FlexSmart TRMS Module to provide accurate measurement of AC voltage. One or two PTs can be used with each FlexSmart TRMS module. This sensor offers an accuracy of mn:1% (from 10% to 130% of rated voltage), but because this transformers ties directly into the line, it should be used only by qualified personnel.

Technical specifications

Indoor environments: Indoor

Measurements: AC Voltage

Range: 150, 300, 600 Volt

Compatible Data Loggers:

U30-NRC-SYS-B, H22-001, U30-NRC, U30-GSM, U30-WIF, U30-ETH

Compatible Sensors: S-FS-TRMSA, S-FS-TRMSA-D

Additional information: 2 input channels of AC Current and/or Voltage

Measures True RMS for accurate readings of sinusoidal and non-sinusoidal waveforms

CheckOptional with calibration
