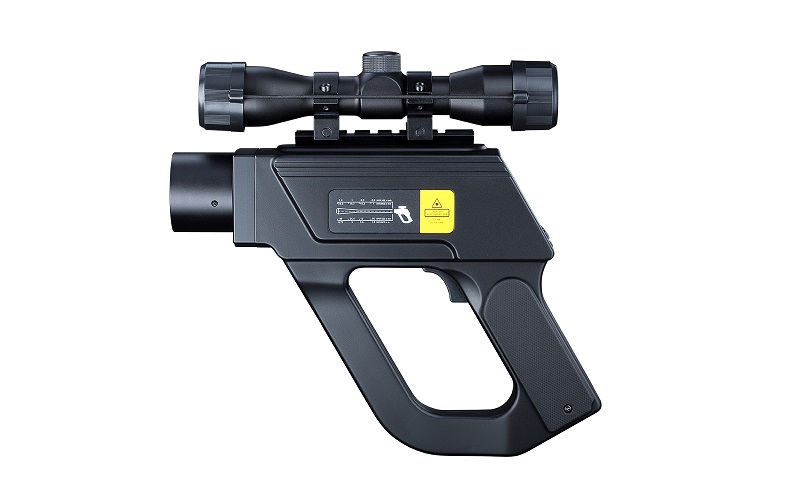

P20 05M – Optris

Infrared handheld thermometer for molten metal, 1000°C to 2000°C

Pedak - Optris P20 05M

The portable thermometer optris P20 05M has been specialized for your assistance in elaborating portable measurement tasks on molten metal. It is specifically suited for temperature measurements requiring only sporadic and punctual execution.

Being a highly specialized industrial thermometer it measures temperatures of up to 2000°C, occurring e.g. in refractory linings of melting troughs. The P20 05M allows for temperature control in the mentioned spots and in many other places.

Technical specifications

Temperature ranges: 1000°C tot 2000°C

Spectral range: 525 nm

Optical resolution: 150:1

System accuracy: (at Tamb = 23 ± 5°C) ±0,3% of reading +2°C

Response time: 100 ms

Emissivity (adjustable): 0.100 - 1.000

Sighting Double laser class II (<1 mW)

Sighting scope: yes

Signal processing: MAX/MIN, Scan/Hold function

Alarm functions: Audible and visible HIGH/LOW alarm

Data storage: 2000 values

CheckOptional with calibration
