InTemp CX403 – Onset

Cold chain wireless Bluetooth data logger with a temperature sensor for ambient temperature measurements, to be used with the InTemp mobile apps or connectable to the CX gateway via Bluetooth for automatic reading of the data.

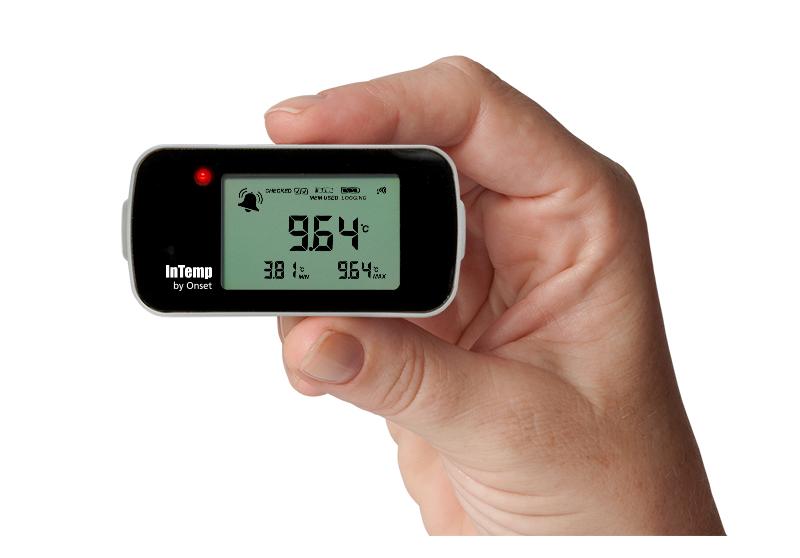

InTemp CX403 datalogger

The InTemp CX403 data loggers monitor temperature in refrigerators, freezers and other temperature-controlled environments to meet global GDP requirements. The loggers communicate wirelessly via Bluetooth Low Energy with mobile devices. With the InTemp app, you can easily view data, check logger status, set alarms, and create and share secure PDF reports (non-customizable) for streamlined reporting and regulatory compliance. All loggers have a built-in LCD display to view current and daily min and max temperatures, advanced audible and visual alarm capabilities to report temperature changes or alarms, and an internal sensor for ambient temperature monitoring. The internal sensor provides +/- 0,5°C accuracy for reliable temperature measurements and the data logger is battery powered so is protected against local power loss.

This data logger integrates with mobile and cloud platforms for a 21 CFR Part 11 compliant solution.

Using an optional CX gateway, you can receive remote notifications of temperature changes and automatically download data from loggers within range of the device. This range is about 20 to 25 meters.

This data logger works in cold chain environments/applications.

Technical specifications

Internal temperature sensor range: -30° to 70°C

Accuracy: ±0,5°C from -15° to 70°C, ±1,0°C from -30° to -15°C

Data logger working range: -30° to 70°C

Logging interval: 1 second to 18 hours

Battery type: 2x AAA 1.5V alkaline or lithium batteries, independently replaceable

Battery life: 1 year with a typical logging interval of 1 minute

Memory: 128 KB (84,650 measurements, maximum)

Display: LCD display is visible from 0°C to 50°C

Rating: IP54

CheckOptional with calibration
