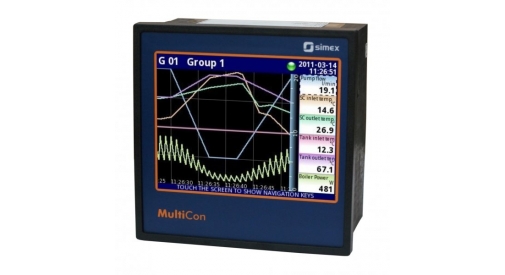

CMC-99
Panel meter for Norm signal, thermocouple, PT-100
The Multicon CMC-99 is a powerful and versatile compact-multichannel-controller with a capability to record data, if the recording function is requested and activated.
Thanks to that it is one of the first industrial devices which integrates advanced control functions (PID, ON/OFF, time : profiles etc.) and logging of setpoints, excitations and current state of controlled objects.
Based on Linux firmware, is stable and the touch screen makes configuration easy and comfortable and data presentation also readable and attractive.
Although the Multicon CMC-99 is build in a quite small housing, it can integrate up to 48 inputs, and its construction allows user almost free configuration by choosing up to 3 from 16 available input/output modules.
Technical specifications
Input depends on configuration:
9 universal inputs max.
48 analogue inputs max.
48 digital inputs max.
24 TC inputs max.
12 RTD inputs max.
12 counter / flowmeter / ratemeter inputs max.
1 digital input 24V DC
mixed: analogue-NTC temperature
mixed: analogue-digital
Output depends on configuration:
8 analogue 4...20 mA max.
16 relay 1A/250V max.
4 relay 5A/250V max.
48 SSR max.
Communication Interface:
RS-485 / Modbus RTU
USB Host port
ETU (1 or 2 x USB Host, 1 x Ethernet 10 Mb/s)
ACM (3 x RS-485/RS-232, 1 or 2 x USB Host, 1 x Ethernet 10 Mb/s)
Power supply: 16...35V AC, 19...50V DC / 85..260V AC/DC
